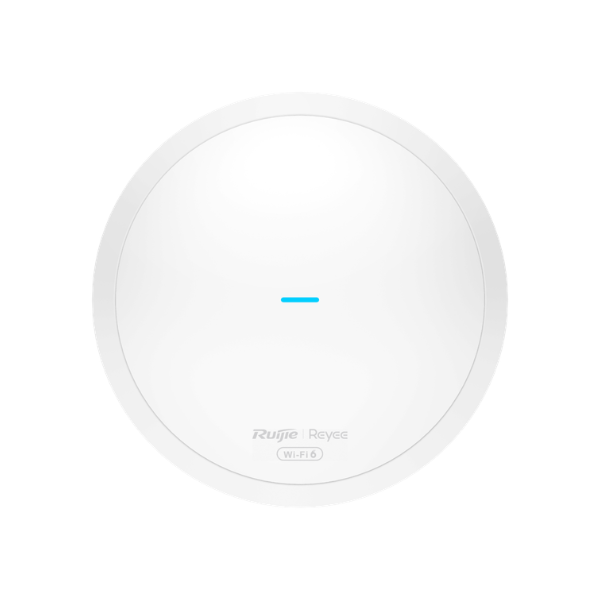

Ruijie RG-RAP62 Wi-Fi 6 AX1800 ceiling Access Point, Gigabit LAN, 2.4GHz/5GHz dual-band

View Description Enquire Now

K399.00

SKU: NT-WIR-378

Related products

Description

Wi-Fi Radio
Radio design

  • Dual-radio
    4 spatial streams
    ● 2.4 GHz: 2 x 2, MU-MIMO
    ● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate

  • 1774 Mbps
6 GHz wireless data rate

  • No
5 GHz wireless data rate

  • 1201 Mbps
2.4 GHz wireless data rate

  • 573 Mbps
Antenna
Antenna

  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)

  • Ø175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)
Color

  • White
Weight

  • ≤ 0.4 kg (0.88 lbs) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports

  • 1
Power Supply and Consumption
Power supply

  • ● DC power adapter
    ● PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply

  • Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector

  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Length: 10 mm (0.39 in.)
PoE budget

  • No
Maximum power consumption

  • 12.95 W
Environment and Reliability
Operating temperature

  • 0°C to 40°C (32°F to 104°F)
Mounting options

  • Ceiling/Wall
IP rating

  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients

  • 64 (2.4 GHz)
    256 (5 GHz)
    256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed

  • 300
IP Service
IPv6

  • Yes
