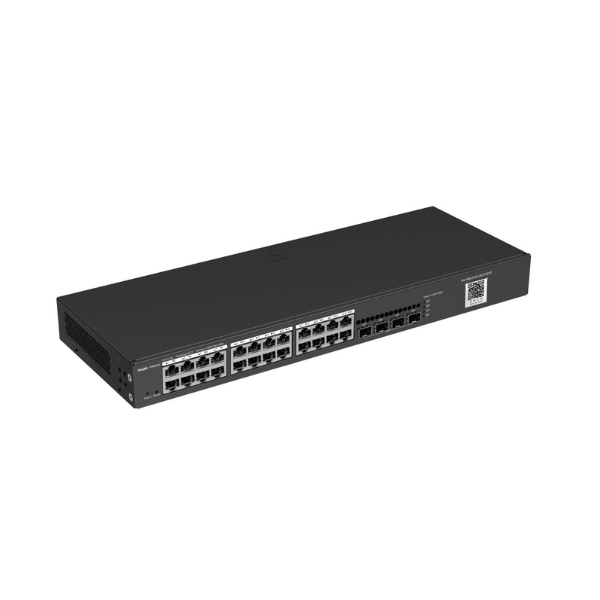

Ruijie RG-NBS3100-24GT4SFP-P-V2 24-port Gigabit Layer 2+ Managed Switch,4*10G Uplinks
K1,599.00
SKU:
NT-SWC-114
Description
| Brand | Ruijie Reyee |
| Model | RG-NBS3100-24GT4SFP-P-V2 |
| Product Type | Layer 2+ Managed PoE Switch |
| Ports | 24 × 10/100/1000 Mbps RJ45 PoE+ Ports |
| Uplink Ports | 4 × 1Gb SFP Slots |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 16K Entries |
| Packet Buffer | 4.1 MB |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| PoE Budget | Up to 370W |
| Maximum PoE per Port | 30W |
| VLAN Support | Up to 4,094 VLANs |
| Layer Features | Layer 2+ Static Routing |
| Routing Features | IPv4 Static Route |
| QoS | Port-based, 802.1p, DSCP Priority |
| Security | ACL, Port Security, DHCP Snooping, Storm Control, 802.1X Authentication |
| Management | Web GUI, Ruijie Reyee Cloud, Ruijie Cloud App, SNMP, CLI |
| Network Protocols | STP/RSTP/MSTP, LACP, IGMP Snooping, LLDP |
| Operating Temperature | 0°C to 50°C |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Mounting | 19-inch Rack Mount |
| Dimensions | 440 × 260 × 43.6 mm |
| Warranty | Manufacturer Limited Warranty |
Key Features
- 24 × Gigabit RJ45 PoE+ ports
- 4 × Gigabit SFP uplink ports for high-speed fiber connectivity
- Total PoE power budget of 370W
- Layer 2+ switching with static routing capability
- 56 Gbps switching capacity for high-performance networking
- 41.67 Mpps forwarding rate for efficient traffic handling
- Supports VLANs, QoS, ACLs, DHCP Snooping, and 802.1X security
- Cloud-managed via Ruijie Reyee Cloud and mobile app
- Supports STP/RSTP/MSTP, LACP, IGMP Snooping, and LLDP
- Rack-mountable metal chassis for professional deployments
