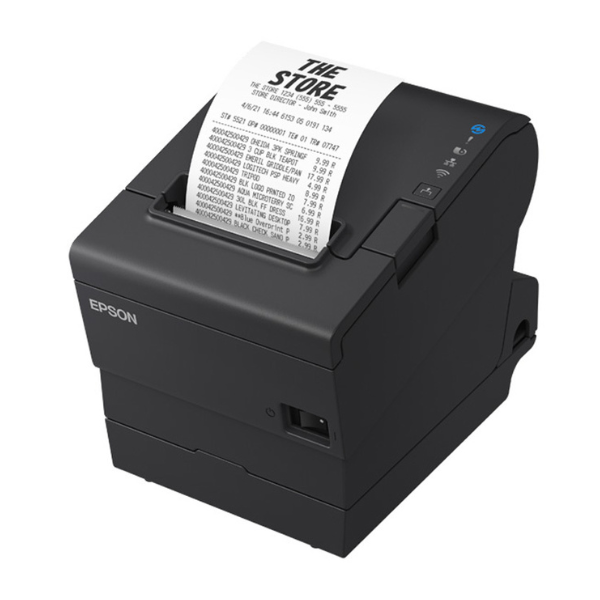

Epson TM-T88VII-612 Desktop Direct Thermal Printer + Zebra
K2,999.00
SKU:
PN-POS-006
Related products
Description
- Ultra-fast transaction times – industry-leading print speeds up to 500 mm/sec1 and high-speed auto cutter
- Reliability you can count on – 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life2
- Connect to multiple devices simultaneously – using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
- Multi-interface support – built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
- Secure wireless connection – supports the latest Wi-Fi® security standard (WPA3)
- Online ordering ready – Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
- POS peripheral support – supports POS peripherals including barcode scanners, customer displays, and more
- Easy setup and configuration – streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
- Easy to understand – status LEDs and network diagnostic sheet improve on-site network troubleshooting
- Backwards compatible – fully compatible with the existing T88V and T88VI software and same footprint
- Advanced paper-saving functions – top-margin and character-height reduction features help reduce paper usage by up to 49 percent3
- Compared to single station thermal receipt printers available in the Australia & New Zealand as of August 2021, based on manufacturers’ published specifications. Speed based on using 80 mm wide media only and Epson’s PS-190 or PS-180 power supply. Configurations not including the PS-190 or PS-180 will have a default print speed of 450 mm/sec.
- Rated printhead and cutter lives are only estimates based on normal use of the printer with the following media only, with printer operated at room temperature and normal humidity: Model KT55FA: Papierfabrik August Koehler SE; Model PD160R: Oji Imaging Media Co., Ltd.; Model TF50KS-EY: NIPPON Paper Industries Co., Ltd. Epson’s statements about reliability levels are not warranties of the media or Epson’s printers, and the only warranties for printers are the limited warranty statements for each printer. See www.epson.com/testedmedia for more information on Tested Media.
- Paper savings depend on the text and graphics printed on the receipt.
The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.
Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
State-of-the-art PC, tablet and web-based POS receipt printer
The TM-T88VII can print receipts directly from the web, tablets, smartphones and other mobile devices using XML commands, and offers internal storage for database and web content uploads. It coexists with traditional PC-based applications and works on several platforms so it’s simple to integrate with your existing network. All models come with Ethernet connectivity, with optional Bluetooth and Wi-Fi connectivity available.
Easy to integrate
The TM-T88VII offers a variety of tools for configuration, operation, installation support and development, as well as TM-Utility for easy set-up. SDKs are available for software developers to create native apps for Android, iOS and Windows devices or web applications.
| THERMAL RECEIPT PRINTER | |
|---|---|
| PRODUCT NAME | TM-T88VII |
| PRINTER | |
|---|---|
| PRINTING TECHNOLOGY | Thermal line printing |
| PRINT RESOLUTION | 180 dpi |
| PRINT SPEED | 500 mm/sec (max) |
| PRINT FONTS | Font A (default): 12 x 24 Font B: 9 x 17 |
| COLUMN CAPACITY | 80mm: 42/48/56 columns 58mm model: 30/36/40 columns |
| CHARACTER SIZE (mm) | Font A (default): 12 x 24 Font B: 9 x 17 |
| CHARACTER SET | 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page). Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean |
| BARCODE | UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited /Expanded |
| MEDIA HANDLING | |
| THICKNESS | 48 – 80 µm |
| MEDIA DIMENSIONS | 80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13″ ± 0.02” x 3.27″) 58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26″ ± 0.02” x 3.27″) |
| STANDARD CONNECTIVITY | Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Serial, Parallel, Powered USB) Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n) Beacon dongle (Epson-approved dongle: Laird model BT820) |
| PRINTER DISCOVERY | NFC (Near Field Communication), Simple AP (wireless network) |
| COMMUNICATION PROTOCOLS | ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless) |
| PRINTING FROM A MOBILE DEVICE | WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows |
| GENERAL | |
| OPERATING SYSTEMS | Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS) Mac OS X® Linux (CUPS, JavaPOS) Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK) |
| DIMENSIONS | 145 x 195 x 148mm (W x D x H) |
| WEIGHT | 1.6kg |
| SECURITY | Security: WEP, WPA-PSK, WPA2-PSK/EAP WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS Port open/close setting IP address filtering |
| SAFETY APPROVALS | RCM: AS/NZS CISPR 32 Class A |
| CASE COLOUR | Epson Black (EBCK) |
| RELIABILITY | |
| MTBF | 360,000 hours |
| MCBF | 70,000,000 lines |
| THERMAL HEAD LIFE | 200 km |
| AUTO CUTTER LIFE | 3 million cuts |
| WARRANTY | 48 months |
| DATA BUFFER | |
| RECEIVE | 45 bytes or 4KB, selectable |
| USER-DEFINED | 12KB |
| MACRO | 2KB |
| NV GRAPHICS | 384KB |
| NV USER | 1KB |
| SOFTWARE INCLUDED | ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise ePOS-Display Server Collaboration: Server Direct Print, Status notification PHP/Sqlite3 Backup/Restore: TM Utility (Win) |
| OPTIONS | Power supply cover PS-190 AC adapter one wall hanging bracket affixing tape and Connect-It interfaces |
| POWER | |
| POWER SUPPLY VOLTAGE | 24VDC ± 7% |
| POWER CONSUMPTION | Operating: 27.6W Stand-by: 0.5W |
| POWER SOURCE | 24VDC ± 7% |
| CONFIG BUILDS | |
| TM-T88VII -612 | Built-in Ethernet, USB, Serial (Part Number : C31CJ57612) |
| TM-T88VII -622 | Built-in Ethernet, USB, Parallel (Part Number : C31CJ57622) |
| TM-T88VII -632 | Built-in Ethernet, USB, PUSB (Part Number : C31CJ57632) |
| TM-T88VII -652 | Built-in Ethernet, Non UIB Slot (Part Number : C31CJ57652) |
| OPTIONS | |
| C32C891324 | Wireless LAN adapter 2.4GHz for TM-T88VII |
| C32C845040 | Wall Hanging Bracket – use with TM-T88VI, TM-T88V, TM-T88IV, TM-T90, TM-L90, TM-U220 & TM-U230 |
| C32C814596 | Power supply cover for TM-T88VII |
| COVERPLUS SERVICE PACK (OPTIONAL) | |
| 1YWT88VII | Coverplus 1yr Service Pack TM-T88VII |
| APPROVED MEDIA | |||
|---|---|---|---|
| Epson’s statements about reliability levels are estimates based on normal use of the printer using tested media only. See below PDF guides for more information regarding tested media. These reliability statements are not warranties of the media or Epson’s printers. For receipt printer warranty please visit, warranty pages. | |||
| Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. |
| Usage Conditions | |
|---|---|
| Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping), do not make modifications to the product and avoid the use of third party consumables. Consult Epson if you have any questions or concerns. |
